Every sand-plant operator eventually meets the feed that defeats the flow sheet: river material with a clay seam, weathered overburden, wet season feed that packs a VSI chamber in an hour. The double-roll crusher is the standard answer — the rolls self-clean, the gap sets the product, and sticky material passes instead of building up.
The SJ.DG.12.80 uses Ø1,200 × 800 mm rolls driven by 2 × 200 kW motors. Throughput is 200–300 t/h with a finished ≤4.75 mm product of 80–160 t/h depending on the feed — the gap is adjustable, so the sand-to-fines split can be tuned in operation.

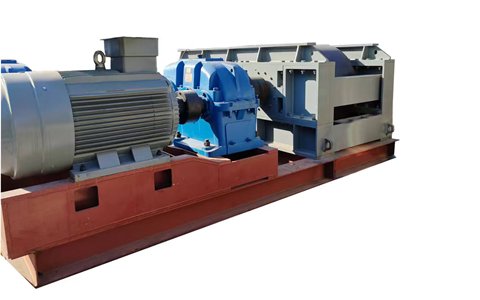

Product and workshop photographs from our own production lines — Hangzhou, Weihai and Wuhu.
Design & working principle
- Self-cleaning roll surfaces — the roll profile sheds sticky clay and wet fines instead of packing, which is the whole point of this machine.
- Adjustable gap for product control — the ≤4.75 mm cut is set mechanically and tunable; no chamber geometry to rebuild when the feed changes.
- Twin 200 kW drives with geared coupling — YE3-355M2-6 motors at 995 rpm, 380 V standard, wound to order for other supplies.
- Overload protection — tramp and uncrushable material passes or trips without destroying the roll surface.
Parameter table
Published as a real HTML table, not a PDF or an image — so it can be read, copied and indexed. Figures are from our own product documentation; the datasheet and GA drawing follow on request.
| Model | Roll Ø×L (mm) | Feed size (mm) | Discharge (mm) | Throughput (t/h) | Finished ≤4.75 mm (t/h) | Motor power (kW) | Motor spec |
|---|---|---|---|---|---|---|---|
| SJ.DG.12.80 | Ø1,200×800 | ≤35 | ≤4.75 (adjustable) | 200–300 | 80–160 | 200×2 | YE3-355M2-6 · 380 V · 995 rpm |
The finished-product column is the honest one: 80–160 t/h of saleable ≤4.75 mm sand depending on feed gradation. Tell us your feed analysis and we will predict where in that band you land.
Configuration & options
Roll surface
Toothed or smooth profiles selected by feed character; re-machining service when wear eventually rounds the profile.
Dust & moisture handling
Covered chute interfaces and spray points for the dusty, wet feed this machine exists for.
Voltage
380 V standard; wound to order for 415 V 50 Hz, 220–240 V and 60 Hz supplies.
How to choose the right model
- This is a niche machine — the right one when feed is sticky or clay-rich and a VSI would blind. On clean hard rock, a cone plus VSI line is normally cheaper per tonne of sand.
- Match the 80–160 t/h finished-sand band to your market before committing; if you need more sand than that, the answer is usually two machines or a VSI line, not one bigger roll.
Delivery & service commitments
| Item | Commitment |
|---|---|
| Standard machine lead time | 60 days from order confirmation |
| Annual production capacity / monthly shipments | 1,000 units per year · 100 units per month (all ranges) |
| Spare parts supply | Within 2 months worst case; typically far faster for models in current production |
| Engineer attendance on site | Within 10 days of the requirement being agreed, for export markets |
| Remote support | Response within one working day; included, not charged |
| Warranty | Terms stated in the contract in the same words published on this site |
| Installation & commissioning | Guidance and supervision by our engineers, through to acceptance at rated capacity |
| Buyer provides | Site civil works, electrical installation and site access — drawings and answers supplied |
We supply the machines, the drawings, the commissioning support and the parts. We do not operate your plant after handover.
Common questions
When would I choose a roll crusher over a VSI?
When the feed sticks. Clay-bound river material and wet overburden blind a VSI chamber and pack a cone; the double-roll passes them. If your feed is clean and dry, this is not your machine — and we will tell you so.
